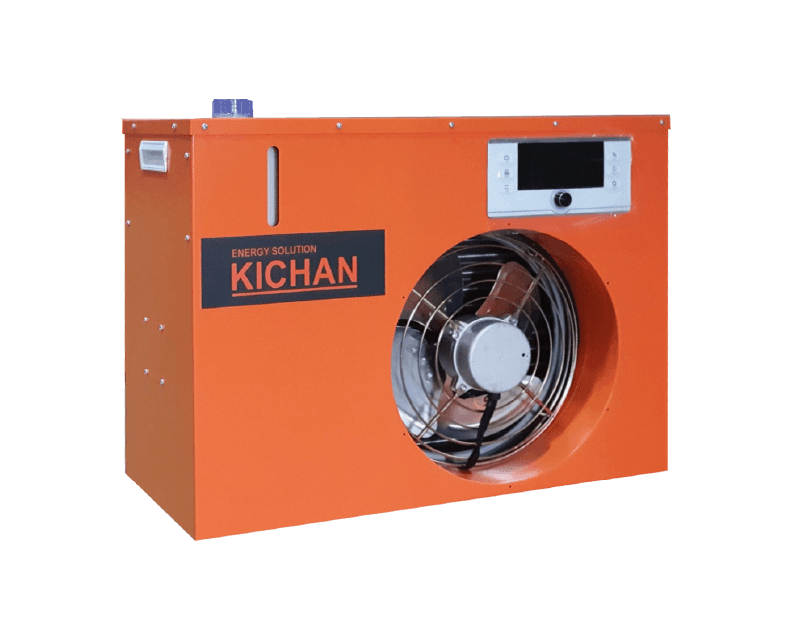

Inverter Electric Warm Air Heater
Kichan Boiler's inverter electric hot air blower is a product that combines an innovative 'water ion amplification' method with an 'inverter proportional control system.' With its permanent patented technology, it maintains a heating efficiency of 98.2%, and by finely controlling the output in proportion to the set temperature, it reduces heating costs by approximately 25% to 40% compared to conventional storage-type heating. It covers large factories and greenhouses ranging from 6,000 to 7,800 square feet (approx. 200 to 260 pyeong), and since no piping is required, it can reduce initial piping installation costs by 100%. It features flexible integration with smart farm central control systems and existing farmhouse control systems, and is equipped with a non-uniform heating detection system and individual temperature sensing technology to help warmth circulate evenly throughout the entire interior of factories and plastic greenhouses.
use
For Agriculture and Greenhouse Horticulture (Smart Farms, Greenhouses, etc.)
- Greenhouses, glass greenhouses, mushroom cultivation facilities, etc., where heating and temperature management are essential during winter
- Intelligent farms requiring automatic temperature control by integrating with existing smart farm environmental control systems
- Agricultural facilities with insufficient piping installation space or looking to reduce initial equipment costs
For Factory and Warehouse Thermal Insulation (Smart Factories, Drying Plants, etc.)
- Applied to industrial complexes for winter heating and creating a suitable working environment
- Relatively simple installation (ready to use immediately after connecting the power wires)
effect
- Breakthrough energy and maintenance cost savings: Through the inverter proportional control method, once the set temperature is reached, only the minimum power is maintained, reducing heating costs by up to 40%.
- Perfect resolution of temperature deviation: By applying individual temperature-sensing control and circulation fan technology to evenly circulate internal heat, it provides a uniform growing environment with no temperature deviation between upper/lower and front/rear sections.
- 100% reduction in initial equipment costs: Warm air heaters can be installed independently without complex hot water piping work, dramatically saving investment costs on piping facilities.
- Safety and durability secured: A 5-fold safety shut-off device eliminates fire hazards at the source, and the use of semi-permanent ion bars with no reduction in thermal efficiency guarantees continuous high efficiency.
Power Consumption by Capacity
- FC-12S3: Power consumption 5kW ~ 12kW, average approx. 8kW (Applicable area approx. 100~200 pyeong)
- FC-12S3(S): Power consumption 8kW ~ 15kW, average approx. 10kW (Applicable area approx. 150~250 pyeong)
-KC-12S3: Power consumption configurable to 4/8/12kW (Applicable area approx. 65 pyeong/4kW, 130 pyeong/8kW, 200 pyeong/12kW)
- PTC Dry circulation fan heater for agricultural use (Individual/Decentralized type): Power consumption 3kW ~ 5kW (Individual decentralized deployment per vinyl greenhouse and smart control linkage possible)
