agricultural fan
Kichan Boiler's agricultural fan lineup consists of the 'Water Particle Fan', which reduces the surrounding temperature by up to 5℃ through fine water particle spraying, and the 'Ceiling Fan', which maximizes the convection effect. The Water Particle Fan rapidly cools the applied space with a powerful airflow and a fine moisture spray of up to 30L per day, and is available in both mobile and wall-mounted types. The Ceiling Fan, which is attached to the ceiling, is an all-weather air convection system that uses forward and reverse rotation to circulate warm ceiling air to the floor during winter to raise the temperature, and smoothly discharge hot air upward during summer to lower the internal temperature.
use
Agricultural Greenhouses and Horticulture & Livestock Farms
- Farms that need to prevent rapid temperature rises inside greenhouses during summer and prevent high-temperature damage
- Facility greenhouses that want to overcome the temperature deviation between the upper and lower parts during winter and increase heating efficiency
- Agricultural and livestock facilities such as barns and poultry houses that require livestock heatstroke prevention and comfortable ventilation circulation
Open Areas such as Parks, Performance Venues, Shopping Malls, Schools, and Military Bases
- Places that require prevention of heat illnesses and excessively high temperatures in open areas
- Effect of reducing the discomfort index for waiting and remaining crowds
effect
- Reliable cooling effect using heat of vaporization: Through a fine water mist spraying method, it provides a cooling effect that lowers the temperature of farms by up to -5℃ based on our internal testing standards.
- Maintaining optimal temperature in all four seasons (convection effect): Through the ceiling-type ceiling fan, warm air from the upper part is forced to undergo convection in winter to help raise the temperature, and in summer, it is guided and discharged to the upper part to save energy.
- Ventilation and humidity control within the facility: By circulating air, it ventilates the high-temperature and highly humid air inside the greenhouse without stagnation, helping plant growth and preventing disease and insect pests.
Power Consumption by Capacity
- Water Micro-particle Fan (Wall-mounted Kc-WC50 / Mobile Stand Kc-WC50S): Maximum power consumption 350W/h (Fan diameter 31.4 inches / 80cm, Maximum air displacement 135㎥/min)
- Ceiling Fan (Ceiling-mounted KC-SF150): Power consumption 100W/h (Fan size 1500mm, supports forward/reverse rotation and remote control)

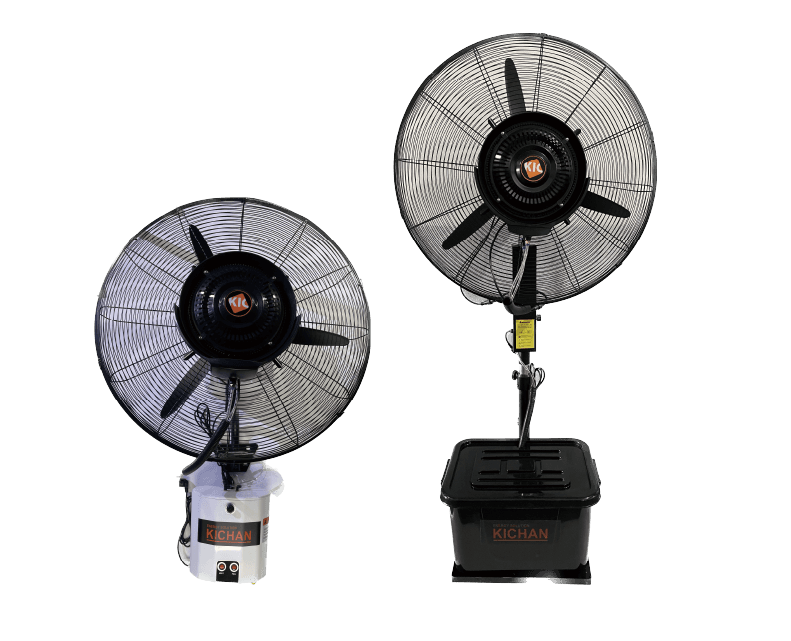

Water misting fan
Agricultural greenhouse ceiling fan
